D7PF6
BRAND: NHP

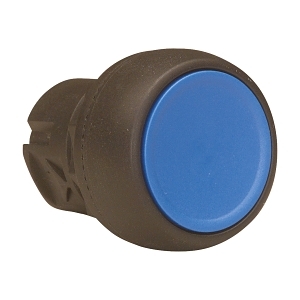

Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Blue Cap Non Ill


$13.20 List price: $17.60
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Blue Cap Non Ill

Brand: NHP

SKU: D7PF6

Alternatively Known As: D7 Pushbutton, Blue Momentary Pushbutton, 22.5mm Pushbutton

Technical Specifications
  • Material: Plastic front ring
  • Colour: Blue button, Black front ring
  • Degree of protection: IP66, NEMA 5
  • Construction type: Round lens
  • Number of command positions: 1
  • Hole diameter: 22.5 mm
  • Max vibration acceleration: 10 m/s²
  • Max shock acceleration: 100 g
  • Max vibration frequency operational: 2000 Hz
  • Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm flat blue pushbutton design.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal functionality and safety.
Applications
  • Industrial: Control panels and machinery
  • Commercial: Equipment and automation systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Blue Cap Non Ill. is available now for immediate purchase, ideal for industrial and commercial applications.

D7PF6-AU-Pushbutton-22.5mm-Datasheet.pdf (D7PF6-AU-Pushbutton-22.5mm-Datasheet.pdf, 416 Kb) [Download]
