BRAND: NHP

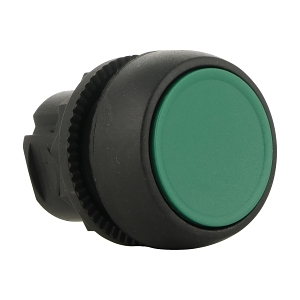

Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Green Cap Non Illuminated


$13.20 List price: $17.60
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Green Cap Non Illuminated

Brand: NHP

SKU: D7PF3

Alternatively Known As: D7 Pushbutton, Green Pushbutton, Momentary Pushbutton

Technical Specifications
  • Colour Button: Green
  • Material Front Ring: Plastic
  • Degree of Protection (IP): IP66
  • Construction Type Lens: Round
  • NEMA Rating: 5
  • Number of Command Positions: 1
  • Hole Diameter: 22.5 mm
  • Max Vibration Acceleration: 10 m/s²
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Shock Acceleration: 100 g
  • Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5 mm flat green pushbutton design.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal functionality and safety.
Applications
  • Industrial: Control panels, machinery
  • Commercial: Equipment control, automation systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary Flush Green Cap Non Illuminated is available now for immediate purchase. Ideal for industrial and commercial control applications.

D7PF3-AU-Pushbutton-22.5mm-Datasheet.pdf (D7PF3-AU-Pushbutton-22.5mm-Datasheet.pdf, 253 Kb) [Download]
