BRAND: NHP

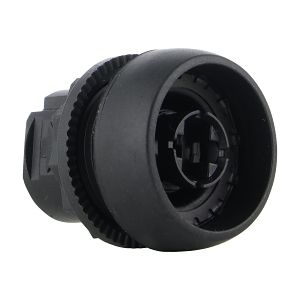

Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary No Cap Included Non Illuminated


$13.20 List price: $17.60
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic Momentary No Cap Included Non Illuminated

Brand: NHP

SKU: D7PF9

Alternatively Known As: D7 Pushbutton, Momentary Switch, Non-Illuminated Pushbutton

Technical Specifications
  • Type of button: Flat
  • Material front ring: Plastic
  • Colour front ring: Black
  • Degree of protection (IP): IP66
  • Construction type lens: Round
  • With front ring: Yes
  • NEMA rating: 5
  • Switching function: Non-latching
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Max shock acceleration: 100 g
  • Number of command positions: 1
  • Suitable for illumination: No
  • Hole diameter: 22.5 mm
  • Dimensions (H x L x W): 10mm x 29.6mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm flat pushbutton design.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal functionality.
Applications
  • Industrial: Control panels, machinery
  • Commercial: Equipment and machinery control
Standards & Compliance
  • Complies with relevant safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only is available now for immediate purchase. Ideal for industrial and commercial control applications.

D7PF9-AU-Pushbutton-22.5mm-Datasheet.pdf (D7PF9-AU-Pushbutton-22.5mm-Datasheet.pdf, 244 Kb) [Download]
