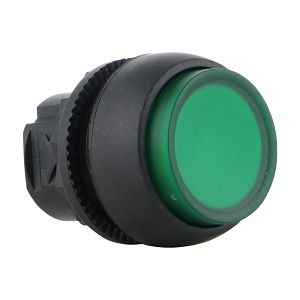

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Illuminated Extended Head Green
Brand: NHP
SKU: D7PLE3
Alternatively Known As: D7 Push Button, Momentary Switch, Illuminated Push Button
Technical Specifications
- Type of button: High
- Material front ring: Plastic
- Colour front ring: Black
- Degree of protection (IP): IP66
- Construction type lens: Round
- Degree of protection (NEMA): 5
- Switching function: Non-latching
- Suitable for illumination: Yes
- Hole diameter: 22.5 mm
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Number of command positions: 1
- Dimensions (H x L x W): 14mm x 22.5mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5mm pushbutton with illuminated green head for easy visibility.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation is recommended for optimal functionality.
Applications
- Industrial: Control panels, machinery operation
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Illuminated Extended Head Green is available now for immediate purchase. Ideal for industrial and commercial control applications.
