BRAND: NHP

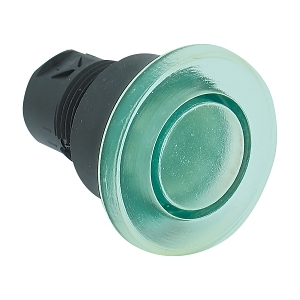

Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Mush Hd 40 mm Green


$63.70 List price: $84.60
+

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Mush Hd 40 mm Green

Brand: NHP

SKU: D7PLMM43

Alternatively Known As: 22.5mm Push Button, Momentary Switch, Emergency Stop Button

Technical Specifications
  • Electrical life at un in service: 500,000 cycles
  • Mechanical life: 10,000,000 cycles
  • Operating temperature: -25 to 70 °C
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Max shock acceleration: 100 g
  • Diameter cap: 40 mm
  • Hole diameter: 22.5 mm
  • Material front ring: Plastic
  • Dimensions (H x L x W): 40mm x 22.5mm x 40mm
  • Weight: 0.2 kg
Key Features
  • IP65/IP66/IP69K rated for high protection against dust and water.
  • Suitable for emergency stop applications.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery
  • Commercial: Emergency stop systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Long mechanical life reduces waste and replacement frequency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Mush Hd 40 mm Green is available now for immediate purchase, ideal for industrial control applications.

D7PLMM43-AU-Pushbutton-22.5mm-Datasheet.pdf (D7PLMM43-AU-Pushbutton-22.5mm-Datasheet.pdf, 333 Kb) [Download]
