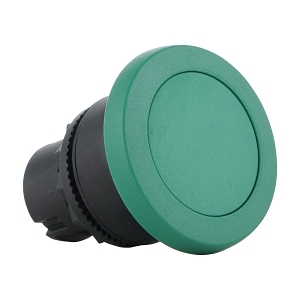

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Green
Brand: NHP
SKU: D7PMM43
Alternatively Known As: Mushroom Push Button, Momentary Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service cycles: 500,000 cycles
- Suitable for emergency stop: Yes
- Material front ring: Plastic
- Degree of protection: IP65/IP66/IP69K
- Max vibration acceleration: 10 m/s²
- Max shock acceleration: 100 g
- Operating temperature: -25-70 °C
- Diameter cap: 40 mm
- Hole diameter: 22.5 mm
- Dimensions (H x L x W): 40mm x 22.5mm x 40mm
- Weight: 0.2 kg
Key Features
- IP65/IP66/IP69K rated for protection against dust and water.
- Mechanical life of 10,000,000 cycles ensures durability.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, emergency stop applications
- Commercial: Equipment requiring momentary pushbutton controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long mechanical life reduces waste and the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Green is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable pushbutton controls.
