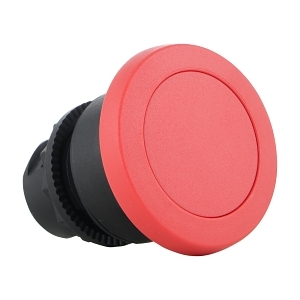

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Red
Brand: NHP
SKU: D7PMM44
Alternatively Known As: Mushroom Push Button, Momentary Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service: 500,000 cycles
- Mechanical life: 10,000,000 cycles
- Operating temperature: -25 to 70 °C
- Max vibration acceleration: 10 m/s²
- Max shock acceleration: 100 g
- Diameter of cap: 40 mm
- Hole diameter: 22.5 mm
- Suitable for emergency stop: Yes
- Dimensions (H x L x W): 40mm x 22.5mm x 40mm
- Weight: 0.2 kg
Key Features
- 22.5mm pushbutton with a 40mm red plastic head.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, emergency stop applications
- Commercial: Equipment requiring momentary pushbutton controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long mechanical life reduces waste and need for replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Red is available now for immediate purchase, ideal for industrial and commercial control applications.
