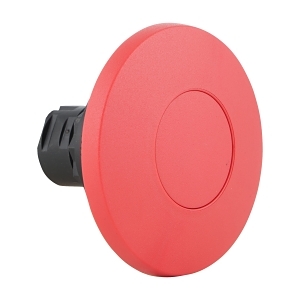

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 60 mm Red
Brand: NHP
SKU: D7PMM64
Alternatively Known As: Mushroom Push Button, Emergency Stop Button, Momentary Switch
Technical Specifications
- Electrical life at un in service cycles: 500,000 cycles
- Suitable for emergency stop: Yes
- Material front ring: Plastic
- Degree of protection IP: IP65/IP66/IP69K
- Mechanical life service cycles: 10,000,000 cycles
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Operating temperature: -25-70 °C
- Dimensions (H x L x W): 60mm x 22.5mm x 60mm
- Weight: 0.2 kg
Key Features
- 22.5mm pushbutton with a 60mm red mushroom head.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety and functionality.
Applications
- Industrial: Control panels, machinery, and emergency stop applications
- Commercial: Equipment requiring momentary pushbutton controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 60 mm Red is available now for immediate purchase. Ideal for industrial and commercial applications.
