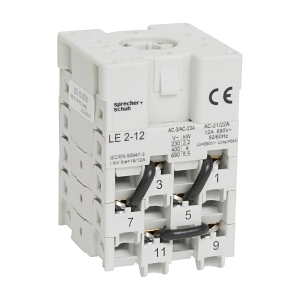

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole 3 Phase Ammeter 12A Panel Mount
Brand: NHP
SKU: LE2128751
Alternatively Known As: Cam Switch, L2 Cam Switch, 1 Pole Cam Switch
Technical Specifications
- Rated operation current at AC 15 230V: 5A
- Rated operation current at AC 15 400V: 3A
- Rated operation current at AC 22A 690V: 12A
- Rated operation current at AC 22A 220-500V: 12A
- Rated operation current at AC 21A 690V: 12A
- Rated operation current at AC 1 690V: 12A
- Thermal current enclosed: 12A
- Thermal current open: 16A
- Type of electrical connection: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 4
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
Key Features
- 1 pole design for 3 phase applications.
- Rated for 12A operation at 690V.
- IP20 rated for front side protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for machinery and equipment control
- Commercial: Used in panel boards and electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
