LE2122501
BRAND: NHP

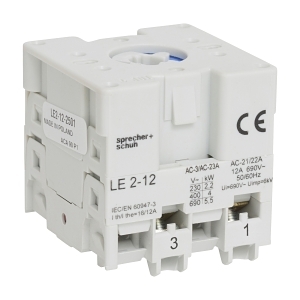

Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover 12A Panel Mount


$82.50 List price: $109.60
+

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover 12A Panel Mount

Brand: NHP

SKU: LE2122501

Alternatively Known As: Cam Switch, Changeover Switch, Panel Mount Switch

Technical Specifications
  • Rated operation current at AC 15 (230V): 5A
  • Rated operation current at AC 15 (400V): 3A
  • Rated operation current at AC 22A (690V): 12A
  • Rated operation current at AC 22A (220-500V): 12A
  • Rated operation current at AC 21A (690V): 12A
  • Rated operation current at AC 1 (690V): 12A
  • Thermal current (enclosed): 12A
  • Thermal current (open): 16A
  • Electrical connection type: Screw connection
  • Mounting method: Front mounting
  • Material housing: Plastic
  • Wire conductor size (rigid cable): 1-2.5 mm²
  • Wire conductor size (flex cable): 1-2.5 mm²
  • Degree of protection: IP20
  • Mechanical life: 1,000,000 cycles
  • Number of switch positions: 2
  • Operating temperature: -25 to 60 °C
  • Dimensions (H x L x W): 42mm x 44mm x 42mm
  • Weight: 0.5 kg
Key Features
  • 1 Pole Changeover design for versatile switching applications.
  • Rated for 12A operation at 690V AC.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Electrical panels and switchboards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable design ensures long service life, reducing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical applications.

LE2122501-AU-Cam-Switch-Body-Datasheet.pdf (LE2122501-AU-Cam-Switch-Body-Datasheet.pdf, 363 Kb) [Download]
