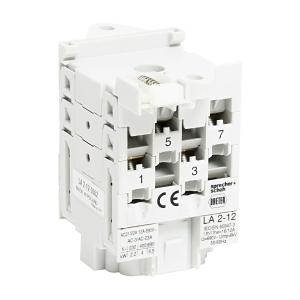

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount
Brand: NHP
SKU: LA2123502
Alternatively Known As: Cam Switch, Changeover Switch, 2 Pole Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 2.2 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22A 690 V: 12 A
- Rated operation current at AC 22A 220-500 V: 12 A
- Rated operation current at AC 21A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection of main circuit: Screw connection
- Material housing: Plastic
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 59mm x 68mm x 68mm
- Weight: 0.5 kg
Key Features
- 2 pole changeover switch with off position.
- Rated for 12A operation.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and power distribution
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
