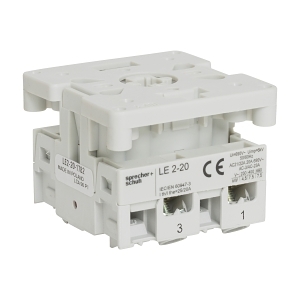

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Off On 20A Panel Mount
Brand: NHP
SKU: LE2201782
Alternatively Known As: Cam Switch, Off-load Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3,400V: 4.5 kW
- Rated operation current at AC 15, 230V: 7 A
- Rated operation current at AC 15, 400V: 5 A
- Rated operation current at AC 22A, 690V: 20 A
- Rated operation current at AC 22A, 220-500V: 20 A
- Rated operation current at AC 21A, 690V: 20 A
- Rated operation current at AC 1, 690V: 20 A
- Thermal current enclosed: 20 A
- Thermal current open: 25 A
- Type of electrical connection: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 1.5-6 mm²
- Wire conductor size (flex cable): 1.5-4 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 55mm x 44.5mm x 55mm
- Weight: 0.5 kg
Key Features
- 2 pole design for reliable switching.
- Rated for 20A operation at 690V.
- IP20 rated for front side protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Off On 20A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
