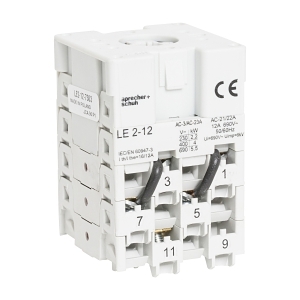

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 12A Panel Mount
Brand: NHP
SKU: LE2127303
Alternatively Known As: Cam Switch, Reversing Switch, 3 Pole Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 4 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22A 690 V: 12 A
- Rated operation current at AC 22A 220-500 V: 12 A
- Rated operation current at AC 21A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection of main circuit: Screw connection
- Material housing: Plastic
- Wire conductor size rigid cable: 1-2.5 mm²
- Wire conductor size flex cable: 1-2.5 mm²
- Degree of protection IP front side: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
Key Features
- 3 pole reversing switch for versatile operation.
- Rated for 12A at 690V, suitable for heavy-duty applications.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching and power management
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
