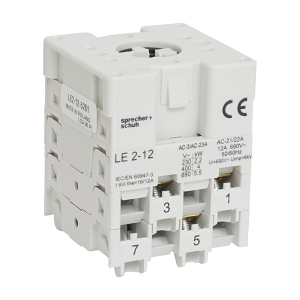

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Position with Off 12A Panel Mount
Brand: NHP
SKU: LE2125261
Alternatively Known As: Cam Switch, L2 Switch, Panel Mount Switch
Technical Specifications
- Number of poles: 1
- Rated operation current (AC 15, 230V): 5 A
- Rated operation current (AC 15, 400V): 3 A
- Rated operation current (AC 22A, 690V): 12 A
- Rated operation current (AC 22A, 220-500V): 12 A
- Rated operation current (AC 21A, 690V): 12 A
- Rated operation current (AC 1, 690V): 12 A
- Thermal current (enclosed): 12 A
- Thermal current (open): 16 A
- Type of electrical connection: Screw connection
- Degree of protection: IP20
- Mechanical life: 1,000,000 cycles
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 54mm x 42mm
- Weight: 0.5 kg
Key Features
- 3 position switch with off functionality.
- Rated for 12A at 400V and 690V.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Position with Off 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
