Trade Discount 25%
LE2125271
BRAND: NHP

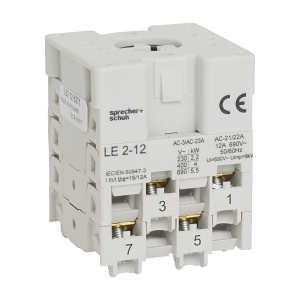

Sprecher and Schuh L2 Cam Switch Switch Body 4 Position with Off 12A Panel Mount


$129.20 List price: $171.60
+

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Position with Off 12A Panel Mount

Brand: NHP

SKU: LE2125271

Alternatively Known As: Cam Switch, L2 Cam Switch, Panel Mount Switch

Technical Specifications
  • Number of poles: 1
  • Rated operation current at AC 15 230V: 5A
  • Rated operation current at AC 15 400V: 3A
  • Rated operation current at AC 22A 690V: 12A
  • Rated operation current at AC 22A 220-500V: 12A
  • Rated operation current at AC 21A 690V: 12A
  • Rated operation current at AC 1 690V: 12A
  • Thermal current enclosed: 12A
  • Thermal current open: 16A
  • Type of electrical connection: Screw connection
  • Mounting method: Front mounting
  • Material housing: Plastic
  • Wire conductor size (rigid cable): 1-2.5 mm²
  • Wire conductor size (flex cable): 1-2.5 mm²
  • Mechanical life service cycles: 1,000,000 cycles
  • Operating temperature: -25 to 60 °C
  • Dimensions (H x L x W): 42mm x 54mm x 42mm
  • Weight: 0.5 kg
Key Features
  • 4 position switch with off functionality.
  • Rated for 12A operation at various voltages.
  • IP20 rated for front side protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Panel mounting for electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 4 Position with Off 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

LE2125271-AU-Cam-Switch-Body-Datasheet.pdf (LE2125271-AU-Cam-Switch-Body-Datasheet.pdf, 385 Kb) [Download]
