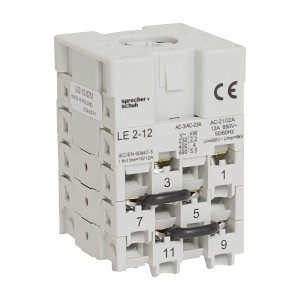

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body Voltmeter Phase Phase Neutral 12A Panel Mount
Brand: NHP
SKU: LE2128251
Alternatively Known As: Cam Switch, L2 Switch, Panel Mount Switch
Technical Specifications
- Rated operation current at AC 15 230V: 5A
- Rated operation current at AC 15 400V: 3A
- Rated operation current at AC 22A 690V: 12A
- Rated operation current at AC 22A 220-500V: 12A
- Rated operation current at AC 21A 690V: 12A
- Rated operation current at AC 1 690V: 12A
- Thermal current enclosed: 12A
- Thermal current open: 16A
- Type of electrical connection: Screw connection
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 7
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
Key Features
- Rated for operation at 12A with multiple voltage options.
- Front mounting design for easy installation.
- IP20 protection rating for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Panel mounting for electrical control systems
- Commercial: Suitable for various electrical applications requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Body Voltmeter Phase Neutral 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
