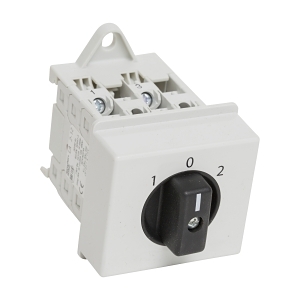

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Complete 1 Pole Changeover Modular Distribution
Brand: NHP
SKU: LA2123251Q
Alternatively Known As: L2 Cam Switch, Modular Distribution Switch, Changeover Switch
Technical Specifications
- Number of poles: 1
- Rated operation current at AC 15 230V: 5 A
- Rated operation current at AC 15 400V: 3 A
- Rated operation current at AC 22A 690V: 12 A
- Rated operation current at AC 22A 220-500V: 12 A
- Rated operation current at AC 21A 690V: 12 A
- Rated operation current at AC 1 690V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection: Screw connection
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Degree of protection: IP66
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 60mm x 82mm x 100mm
- Weight: 0.5 kg
Key Features
- Complete Cam Switch Unit with a robust design.
- IP66 rated for protection against dust and water.
- Mechanical life of 1,000,000 cycles for durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for various industrial applications requiring reliable switching.
- Commercial: Ideal for commercial electrical installations.
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for long service life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
