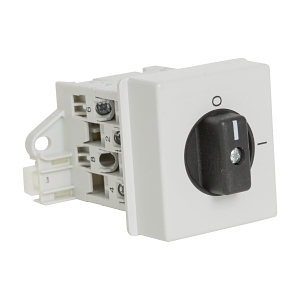

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Complete 3 Pole Off On Modular Distribution
Brand: NHP
SKU: LA2121753Q
Alternatively Known As: 3 Pole Cam Switch, Modular Cam Switch, Off On Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 4 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22 A 690 V: 12 A
- Rated operation current at AC 22 A 220 500 V: 12 A
- Rated operation current at AC 21 A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection of main circuit: Screw connection
- Material housing: Plastic
- Wire conductor size rigid cable: 1-2.5 mm²
- Wire conductor size flex cable: 1-2.5 mm²
- Number of switch positions: 2
- Operating temperature: -25-60 °C
- Mechanical life service cycles: 1,000,000 cycles
- Dimensions (H x L x W): 59mm x 92mm x 92mm
- Weight: 1.5 kg
Key Features
- Complete cam switch unit with 3 poles for reliable operation.
- IP66 rated for protection against dust and water ingress.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for machinery and equipment control
- Commercial: Ideal for distribution boards and electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Complete 3 Pole Off On Modular Distribution is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
