LFC2A4175I
BRAND: NHP

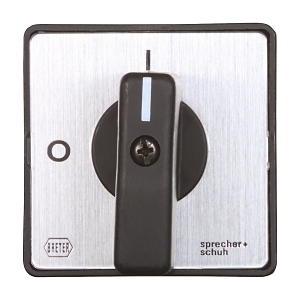

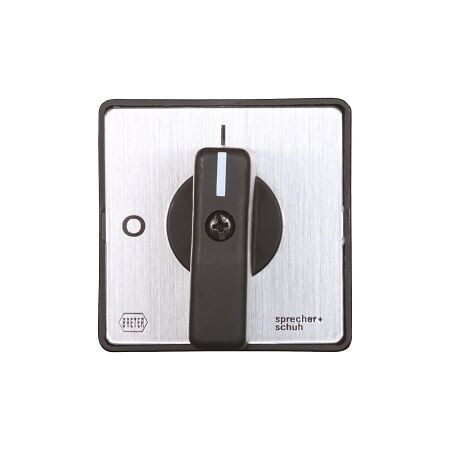

Sprecher and Schuh L7 Handle Std Type A BK/Silver Central Nut Mount 48 x 48mm Engraved OFF ON

$36.10 List price: $47.90
+ −
30 Days Return Delivery Options

Product Name/Title: Sprecher and Schuh L7 Handle Std Type A BK/Silver Central Nut Mount 48 x 48mm Engraved OFF ON

Brand: NHP

SKU: LFC2A4175I

Alternatively Known As: L7 Loadbreak Switch Handle, Control Element for Selector Switch

Technical Specifications
  • Type of Control Element: Short thumb-grip
  • Colour Control Element: Black
  • Material Front Ring: Metal
  • Degree of Protection (IP Front Side): IP66
  • Number of Switch Positions: 2
  • Switching Function Latching: Yes
  • Spring Return: No
  • Mechanical Life Service Cycles: 200,000 cycles
  • Suitable for Illumination: No
  • Hole Diameter: 30.6 mm
  • Width Opening: 22.5 mm
  • Operating Temperature: -25 to 60 °C
  • Dimensions (H x L x W): 48mm x 48mm x 48mm
  • Weight: 0.5 kg
Key Features
  • Short thumb-grip control element for easy operation.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Suitable for loadbreak switch applications.
  • Commercial: Can be used in various control systems.
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L7 Handle Std Type A BK/Silver Central Nut Mount is available now for immediate purchase. Ideal for industrial and commercial control applications.

Non-Returnable & Non-Cancellable

LFC2A4175I-AU-L7-Handle-Datasheet.pdf (LFC2A4175I-AU-L7-Handle-Datasheet.pdf, 343 Kb) [Download]
