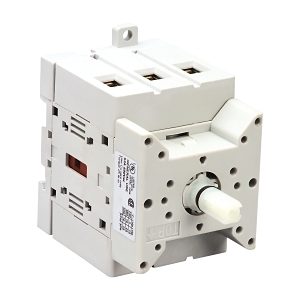

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 16A
Brand: NHP
SKU: LE7161753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 5.5 kW
- Rated operation current IE at AC 21A 690 V: 16 A
- Rated operation current IE at AC 1 690 V: 16 A
- Thermal current enclosed: 20 A
- Thermal current open: 25 A
- Mechanical life service cycles: 200,000 cycles
- Operating temperature: -25 to 60 °C
- Wire conductor size for rigid cable: 1.5-6 mm²
- Wire conductor size for flexible cable: 1-10 mm²
- Dimensions (H x L x W): 63mm x 51mm x 36mm
- Weight: 0.5 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 16A operation at 690V.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 16A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
