DL1365/WH/TC

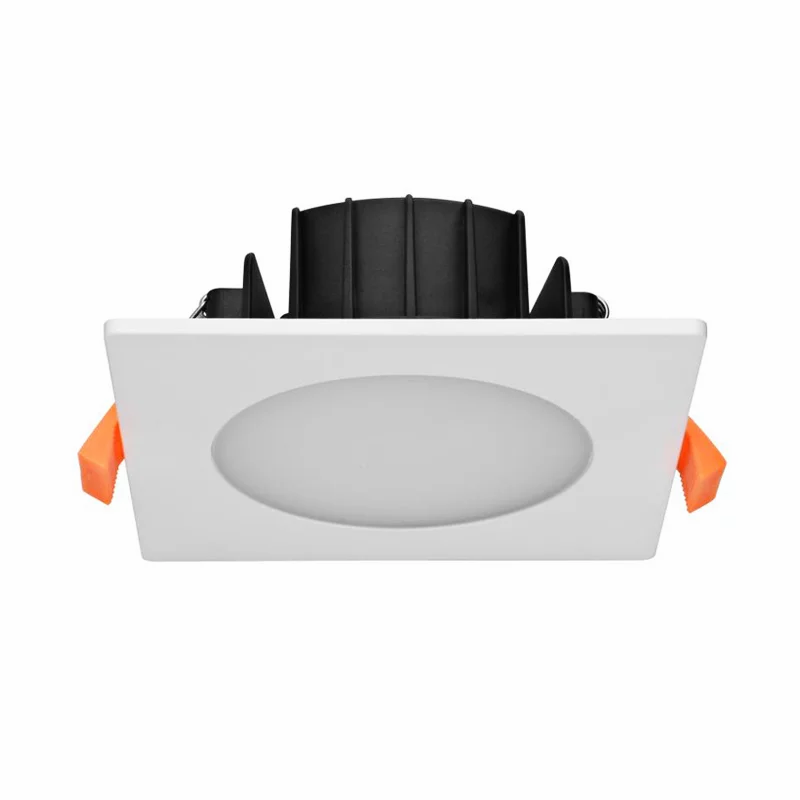

Square Flat Downlight 10w White


$16.00 List price: $20.80
+

Product Name/Title: Square Flat Downlight 10w White

Brand: 3A Lighting

SKU: DL1365/WH/TC

Alternatively Known As: Tricolour LED Downlight, Selectable CCT Downlight, 3A Lighting Downlight, LED Ceiling Light

Technical Specifications
  • Selectable Colour Temperature: 3000K / 4000K / 5000K (via DIP switch)
  • Body Material: Polycarbonate
  • IP Rating: IP54
  • Remote constant current dimmable LED driver with flex & plug
  • Dimmable: Not compatible with push button dimmer
  • Dimensions (H x L x W): 60mm x 110mm x 110mm
  • Weight: 0.3 kg
Key Features

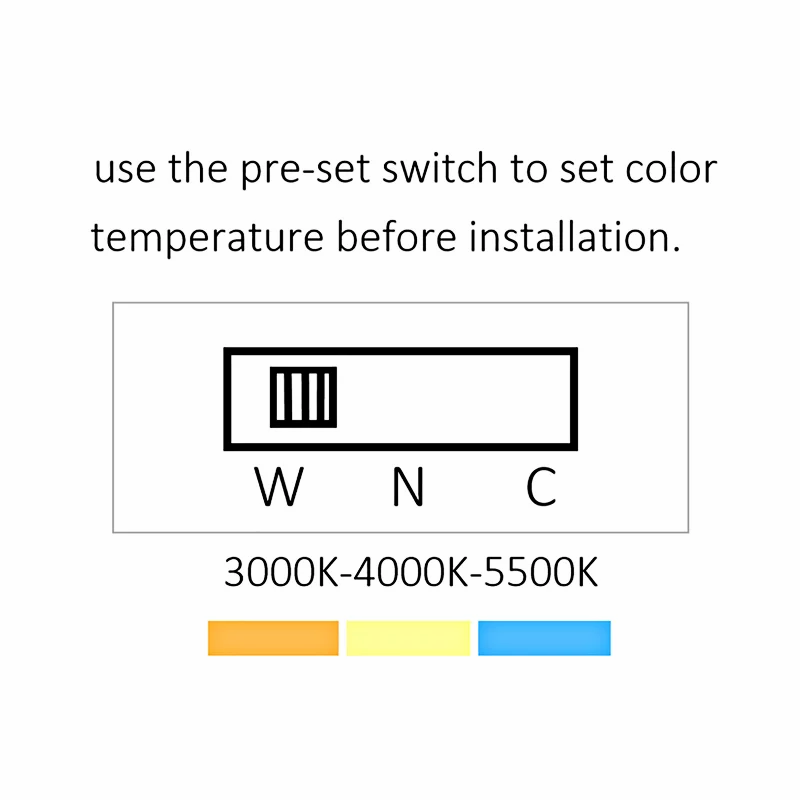

  • Selectable colour temperature (3000K/4000K/5000K) via inbuilt DIP switch

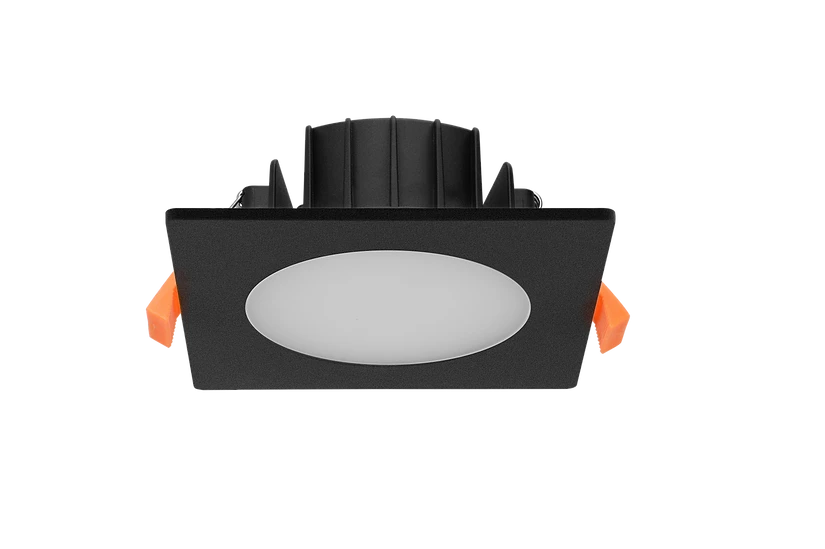

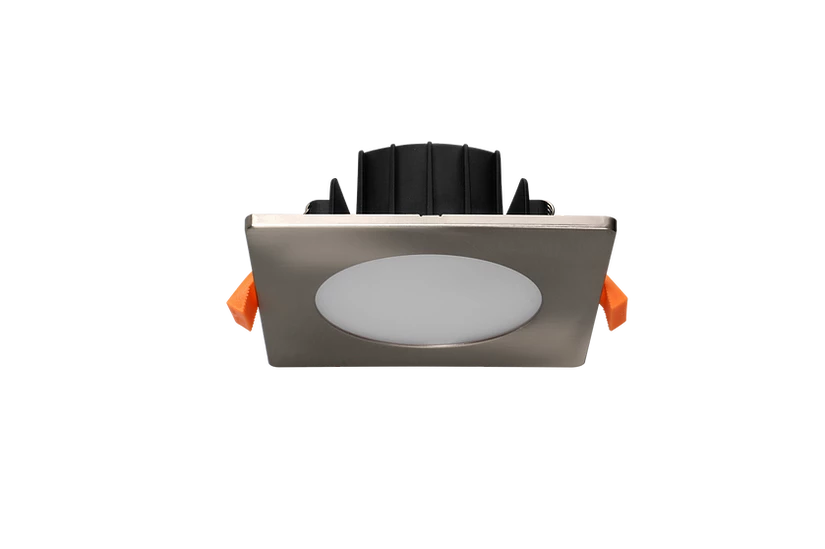

  • Available in White, Black, and Satin Chrome finishes
  • Polycarbonate body for durability
  • Remote constant current dimmable LED driver with flex & plug
  • Dimmable (not compatible with push button dimmer)
  • Easy installation
  • IP54 rated for dust and splash protection
Professional Installation Requirements
  • Professional installation by a licensed electrician is required to ensure safety and compliance with Australian standards.
Applications
  • Residential: Living rooms, bedrooms, kitchens, hallways
  • Commercial: Reception areas, hotels, shops, offices
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption and carbon footprint.
  • Long lifespan minimizes waste and replacement frequency.
Warranty Information

3 years replacement warranty.

Available Now

Available for immediate purchase. Ideal for residential and commercial lighting applications requiring selectable colour temperature and reliable performance.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (d307c2_882eeecbdf854e1c80a5c7f5428a8232.pdf, 1,178 Kb) [Download]
