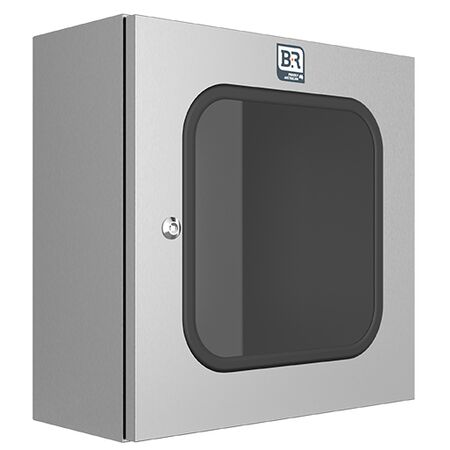

Stainless Steel Enclosure with Glass Viewing Window | IP66 Rated | 1200Hx600Wx500D by B&R Enclosures
Stainless steel enclosure with IP66 rating and glass viewing window—ideal for industrial motor control and lighting applications. Built for durability with 316 stainless steel and concealed removable hinging.
Sign in
Please login to continue to your account.
Product Name/Title: Monarch IP 1200Hx600Wx500D IP66 SS N4 VW Glass
Brand: B&R Enclosures
SKU: IP45215/S/WG
Alternatively Known As: Monarch IP Viewing Window, Stainless Steel Enclosure, IP66 Enclosure
- Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
- 1.5mm 316 stainless steel gland plate (brass also available as an option)
- Ripple Orange – X15 finish
- 5.4 thick Glass viewing window
- Dimensions (H x L x W): 600mm x 600mm x 1200mm
- Weight: 25 kg
- IP66 protection rating
- C rail mountings for equipment
- Gland plate fitted internally or externally on units 400mm or above
- Vertical body and door rails
- 3 point locking on models of 600mm high and above
- Lockable L handle on enclosures 1600mm high and above
- Glass Viewing Window
- 1.2/1.5mm thick 316 stainless steel
- Stainless steel hinges and hinge pins for easy door opening
- Concealed removable hinging
- Polyurethane gasket (foamed in place)
- Professional installation is recommended to ensure compliance with safety standards.
- Industrial: Motor control applications, lighting, CT metering, small switchboards
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.
