PBLWRF25LM
BRAND: NHP

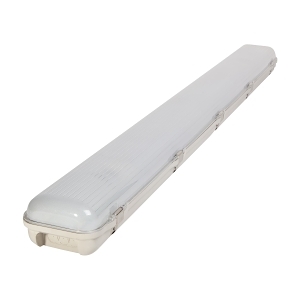

Stanilite Nexus RF Platinum Batten LED IP65 Nexus RF 600mm Maintained 2500 Lumens


$702.20 List price: $932.40
+

Product Name/Title: Stanilite Nexus RF Platinum Batten LED IP65 Nexus RF 600mm Maintained 2500 Lumens

Brand: NHP

SKU: PBLWRF25LM

Alternatively Known As: Nexus RF Batten, Emergency LED Batten Light

Technical Specifications
  • Operating Mode: Maintained
  • Nominal Voltage: 240 V AC
  • Max System Power: 25 W
  • Nominal Operation Time: 75000 h
  • Material Housing: Plastic
  • Colour Housing: White
  • Material Cover: Plastic, opal
  • Degree of Protection: IP65
  • Impact Strength: IK08
  • Lamp Type: LED exchangeable
  • Dimensions (H x L x W): 90mm x 660mm x 140mm
  • Weight: 1.5 kg
Key Features
  • Maintained operating mode for continuous illumination.
  • High lumen output of 2500 lumens for effective lighting.
  • IP65 rated for dust and water resistance.
  • Impact strength rated at IK08 for durability.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Offices, retail spaces, and public buildings
  • General: Any indoor or outdoor location requiring reliable emergency lighting
Standards & Compliance
  • Compliant to AS/NZS 60598.1:2017 for safety and performance standards.
  • Compliant to AS/NZS 2293.3:2018 for emergency lighting.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption and environmental impact.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Stanilite Nexus RF Platinum Batten LED IP65 is available now for immediate purchase, ideal for commercial and emergency lighting applications.

PBLWRF25LM-AU-Platinum-Batten-Datasheet.pdf (PBLWRF25LM-AU-Platinum-Batten-Datasheet.pdf, 252 Kb) [Download]
