PBL4AC46L
BRAND: NHP

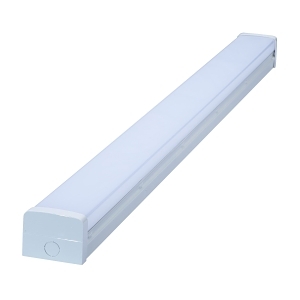

Stanilite Single Point Platinum Batten IP44 1200mm Mains AC 4600 Lumens


$113.10 List price: $150.10
+

Product Name/Title: Stanilite Single Point Platinum Batten IP44 1200mm Mains AC 4600 Lumens

Brand: NHP

SKU: PBL4AC46L

Alternatively Known As: Emergency Batten Light, LED Batten, Emergency Lighting Fixture

Technical Specifications
  • Operating Mode: Maintained
  • Nominal Voltage: 240 V
  • Voltage Type: AC
  • Max System Power: 38 W
  • Nominal Operation Time: 50000 h
  • Mounting Method: Wall surface mounted / ceiling surface mounting
  • Material Housing: Plastic
  • Material Cover: Plastic, opal
  • Degree of Protection: IP40
  • Impact Strength: IK06
  • Lamp Type: LED exchangeable
  • Dimensions (H x L x W): 65mm x 1200mm x 80mm
  • Weight: 2.5 kg
Key Features
  • Maintained operating mode for continuous illumination.
  • High lumen output of 4600 lumens for effective lighting.
  • IP44 rated for protection against water and dust.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Offices, retail spaces, and public buildings
  • General: Any indoor location requiring reliable emergency lighting
Standards & Compliance
  • Complies with AS/NZS 2293.3:2018 for emergency lighting.
  • Complies with AS/NZS 60598.1:2017 for safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption and environmental impact.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Stanilite Single Point Platinum Batten IP44 1200mm Mains AC 4600 Lumens is available now for immediate purchase. Ideal for commercial and general indoor applications.

PBL4AC46L-AU-Platinum-Batten-Datasheet.pdf (PBL4AC46L-AU-Platinum-Batten-Datasheet.pdf, 203 Kb) [Download]


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
