PBLWAC35LMD
BRAND: NHP

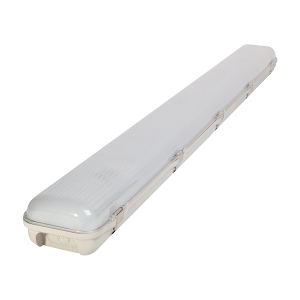

Stanilite Single Point Platinum Batten LED IP65 AC 3500 Lumens MD


$338.40 List price: $449.40
+

Product Name/Title: Stanilite Single Point Platinum Batten LED IP65 AC 3500 Lumens MD

Brand: NHP

SKU: PBLWAC35LMD

Alternatively Known As: Emergency Batten Light, LED Batten, IP65 Batten Light

Technical Specifications
  • Operating Mode: Maintained
  • Nominal Voltage: 240 V AC
  • Max System Power: 28 W
  • Nominal Operation Time: 75000 h
  • Driver Type: LED
  • Mounting Method: Wall or ceiling surface mounted
  • Material Housing: Plastic
  • Material Cover: Plastic, opal
  • Lamp Type: LED exchangeable
  • Dimmable: Yes
  • Degree of Protection: IP65
  • Dimensions (H x L x W): 90mm x 1260mm x 140mm
  • Weight: 3.0 kg
Key Features
  • IP65 rated for dust and water resistance.
  • Maintained operating mode for continuous illumination.
  • Dimmable functionality for adjustable brightness.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Offices, retail spaces, and public areas
  • General: Emergency lighting in various indoor environments
Standards & Compliance
  • Complies with AS/NZS 2293.3:2018 for emergency lighting.
  • Complies with AS/NZS 60598.1:2017 for safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces electricity consumption.
  • Long operational life minimizes waste and replacement frequency.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Stanilite Single Point Platinum Batten LED is available now for immediate purchase, ideal for emergency lighting solutions.

PBLWAC35LMD-AU-Platinum-Batten-Datasheet.pdf (PBLWAC35LMD-AU-Platinum-Batten-Datasheet.pdf, 238 Kb) [Download]
