28402001
BRAND: NHP

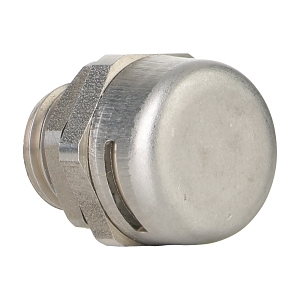

STEGO Pressure Compensation Device 303 Stainless M12 IP66 Qty 1


$119.70 List price: $158.90
+

Product Name/Title: STEGO Pressure Compensation Device 303 Stainless M12 IP66 Qty 1

Brand: NHP

SKU: 28402001

Alternatively Known As: Pressure Relief Valve, Air Vent Valve, Condensate Drain Valve

Technical Specifications
  • Air Permeability: 120 l/h
  • Material: Stainless steel
  • Degree of Protection: IP66
  • Thread Size: M12 x 1.5
  • Nominal Tightening Torque: 5 Nm
  • Max Tightening Torque: 10 Nm
  • Operating Temperature: -45-80 °C
  • Storage Temperature: -45-80 °C
  • Dimensions (H x L x W): 31mm x 12.1mm x 12.1mm
  • Weight: 0.02 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Made from durable stainless steel for longevity.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Enclosures and cabinets requiring pressure compensation
  • Commercial: HVAC systems and equipment
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Complies with relevant environmental standards for industrial applications.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The STEGO Pressure Compensation Device 303 Stainless M12 IP66 is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable pressure management.

28402001-AU-Pressure-Compensation-Device-Datasheet.pdf (28402001-AU-Pressure-Compensation-Device-Datasheet.pdf, 339 Kb) [Download]
