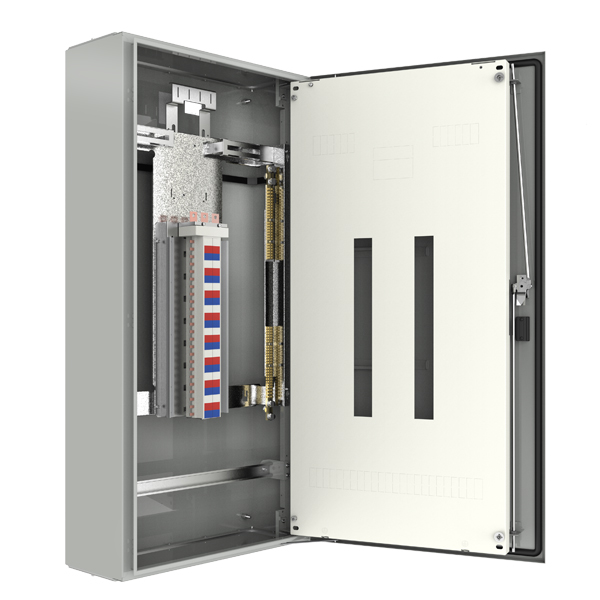

Product Name/Title: Superior IP66 36Pole Panelboard +24P DIN, RAL7035
Brand: B&R Enclosures
SKU: PBS36P
Alternatively Known As: Bren Panelboard, Industrial Panelboard, Commercial Panelboard
Technical Specifications
- Material: Zinc coated steel - RAL7035
- Protection Rating: IP66
- Chassis Sizes: 24P, 36P, 48P, 60P, 72P (250A max)
- Locking Mechanism: Three-point swing-handle half-euro cylinder lock
- Gland Plates: 3mm aluminium top and bottom
- DIN Sections: 6 Pole DIN section either side of Main Switch, 24 Pole DIN section below chassis
- Dimensions (H x L x W): 1100mm x 250mm x 600mm
- Weight: 25 kg
Key Features
- IP66 protection rating.
- Compatible with leading MCB’s.
- Designed for NSX250 or P250E MCCB’s.
- Fully AS/NZS 61439 compliant.
- Field reversible door and escutcheon.
- Three-point swing-handle half-euro cylinder lock.
- Available in multiple chassis sizes.
Professional Installation Requirements
- Professional installation is recommended to ensure compliance with safety standards.
Applications
- Commercial: Ideal for commercial developments and industrial applications.
- Residential: Suitable for multi-residential developments.
Standards & Compliance
- Fully AS/NZS 61439 compliant.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Superior Panelboard by Bren Closures is available now for immediate purchase, ideal for commercial and industrial applications.
