PBS48P

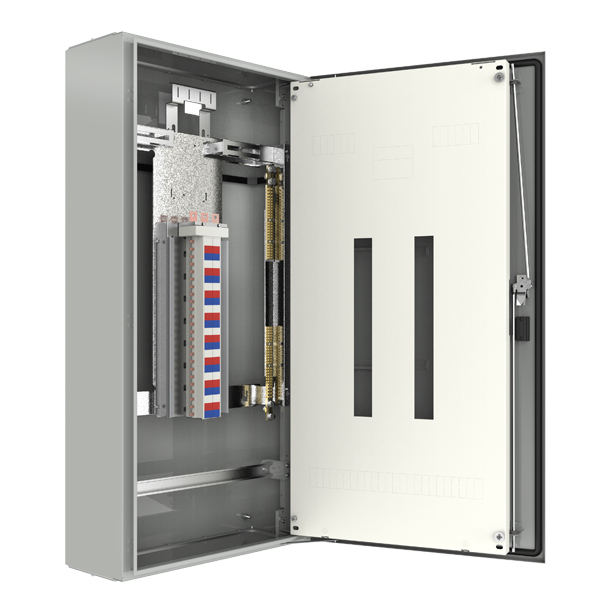

Superior IP66 48Pole Panelboard +24P DIN, RAL7035


$2,366.60 List price: $2,974.60

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Superior IP66 48Pole Panelboard +24P DIN, RAL7035

Brand: B&R Enclosures

SKU: PBS48P

Alternatively Known As: B&R Infinity 3G Panelboard, Extension Box, Electrical Distribution Board

Technical Specifications
  • Material: Zinc coated steel - RAL7035
  • Protection Rating: IP66
  • Chassis Sizes: 24P, 36P, 48P, 60P, 72P (250A max)
  • Lock Type: Three-point swing-handle half-euro cylinder lock
  • Gasket: Polyurethane gasket (formed in place)
  • Dimensions (H x L x W): 1200mm x 250mm x 600mm
  • Weight: 30 kg
Key Features
  • IP66 protection rating
  • Compatible with leading MCB’s
  • Designed for NSX250 or P250E MCCB’s
  • Fully AS/NZS 61439 compliant
  • Field reversible door and escutcheon
  • Three-point swing-handle half-euro cylinder lock
  • 5 chassis sizes available
  • Multi-function extension box up to 48P
  • Aluminium gland plates top and bottom
  • Hinged escutcheon
  • Swing handle three point locking
  • Escutcheon earth strap kit
  • Choice of materials: Zinc coated steel and stainless steel
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Ideal for commercial developments
  • Industrial: Suitable for industrial applications
  • Residential: Can be used in multi-residential developments
Standards & Compliance
  • Fully AS/NZS 61439 compliant.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Superior Panelboard is available now for immediate purchase. Ideal for commercial and industrial applications.
