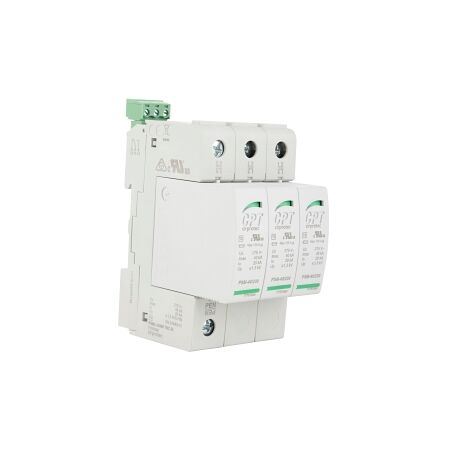

Surge Protection Device Type 2 | 3 Phase 40kA | 400VAC DIN Rail by NHP
Surge protection device with 40kA discharge current and 400VAC nominal voltage—ideal for industrial and commercial power systems. Built for enhanced safety, with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N Imax 40kA 400VAC
Brand: NHP
SKU: CPTPSM340400IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector
Technical Specifications
- Max Discharge Surge Current (8/20): 40 kA
- Protection Class: II
- Nominal Voltage AC: 400 V
- Voltage Protection Level: 1.4 kV
- Short Circuit Breaking Capacity (ISCCR): 100 kA
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Dimensions (H x L x W): 100mm x 120mm x 100mm
- Weight: 1.5 kg
Key Features
- Surge protection class II for enhanced safety.
- Maximum discharge surge current of 40 kA.
- Nominal voltage of 400 V with a voltage protection level of 1.4 kV.
- Short circuit breaking capacity of 100 kA.
- Designed for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply systems
- Commercial: Retail and office buildings
- General: Any facility requiring surge protection for electrical systems
Standards & Compliance
- Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
- Helps protect electrical systems from damage due to surges, reducing waste and maintenance costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust surge protection.
