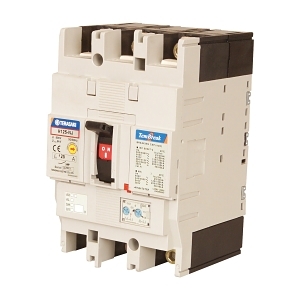

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 100A Thermal Magnetic
Brand: NHP
SKU: H125NJ3100
Alternatively Known As: MCCB, Thermal Magnetic Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Thermal/magnetic release for reliable protection
- Adjustable thermal and magnetic trip curves
- High short-circuit breaking capacity of 125 kA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for long electrical and mechanical life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 100A Thermal Magnetic is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
