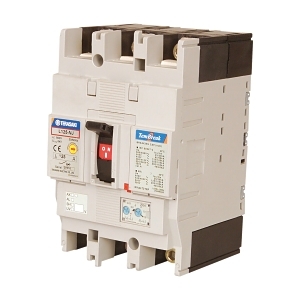

Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic

SKU: L125NJ3100

BRAND: NHP

Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic

$2,659.60 List price: $3,531.60

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic

Brand: NHP

SKU: L125NJ3100

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 150 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 63-100 A
Instantaneous Protection Adjustment Range: 600-1200 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Suitable for Isolation: Yes
Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
Rated Impulse Withstand Voltage: 8 kV
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature Without Derating: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 2.4 kg

Key Features

Thermal/magnetic release for reliable protection
Adjustable thermal and magnetic trip curves
High short-circuit breaking capacity of 200 kA

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed for long service life, reducing waste and resource consumption.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

L125NJ3100-AU-TB2-MCCB-Datasheet.pdf (L125NJ3100-AU-TB2-MCCB-Datasheet.pdf, 2,148 Kb) [Download]
