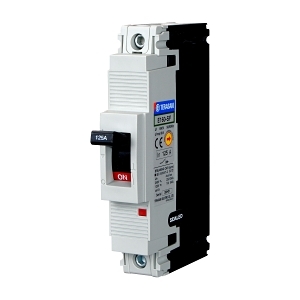

Product Name/Title: Terasaki TemBreak 2 MCCB 160 Frame 25kA 1P 25A
Brand: NHP
SKU: E160SF125
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Number of Poles: 1
- Max Rated Operation Voltage: 240 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 95mm x 25mm
- Weight: 0.3 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Fixed thermal and magnetic trip curves for consistent performance.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in home installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Designed for long electrical and mechanical life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 160 Frame 25kA 1P 25A is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
Non-Returnable & Non-Cancellable
