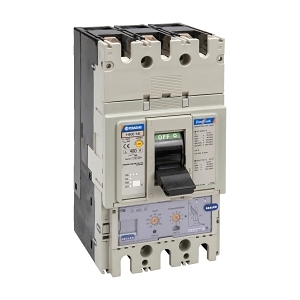

Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Electronic
Brand: NHP
SKU: H400NE3250
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Cable Cross Section Range: 35-400 mm²
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 7.1 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient design reduces energy loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications.
