Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Electronic Metering Comms Output XOW 2S AC
Brand: NHP
SKU: H250NE3250AC
Alternatively Known As: Terasaki Circuit Breaker, MCCB, Electronic Metering Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Voltage: 690 V
- Short Circuit Breaking Capacity: 125 kA at 415 V
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 127mm x 129mm
- Weight: 2.5 kg
Key Features

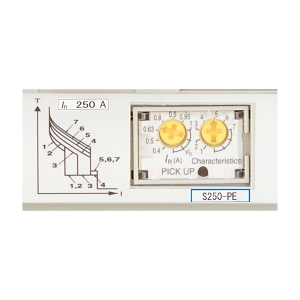

- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring usage.
- Modbus TCP communications protocol for easy integration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Efficient energy management through integrated metering reduces overall energy consumption.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame is available now for immediate purchase, ideal for industrial and commercial power distribution.
Non-Returnable & Non-Cancellable
