Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 4P 250A Electronic Metering Comms Output XOW 2S AC
Brand: NHP
SKU: H250NE4250AC
Alternatively Known As: Terasaki Circuit Breaker, MCCB, Electronic Metering Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA

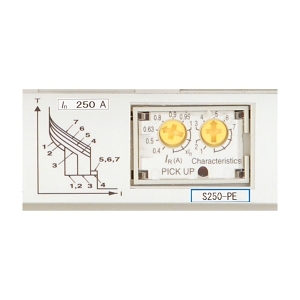

- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Protection Adjustment Range: 250-2500 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10000 cycles
- Mechanical Life: 30000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 165mm x 127mm x 164mm
- Weight: 3.3 kg
Key Features
- 250A rated current with 125kA short circuit breaking capacity.
- Electronic release trip unit with LSI trip curve.
- Integrated energy metering function for monitoring usage.
- Modbus TCP communications protocol for integration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
