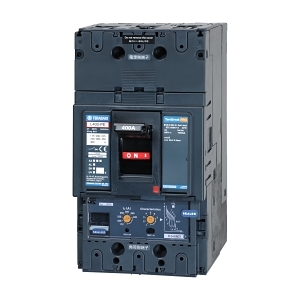

Product Name/Title: Terasaki TemBreak 2 MCCB 400 Frame 200kA 4P 400A Electronic
Brand: NHP
SKU: L400NE4400
Alternatively Known As: Terasaki Circuit Breaker, MCCB 400A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 50 kA
- Rated Short Circuit Breaking Capacity (ICS): 50 kA
- Short Time Withstand Current (ICW): 5 kA
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 260mm x 140mm x 185mm
- Weight: 9.4 kg
Key Features
- Electronic release for precise protection.
- High breaking capacity of 200 kA.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 400 Frame 200kA 4P 400A Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
