Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 800A Electronic

Trade Discount 25%

SKU: L800NE3800

BRAND: NHP

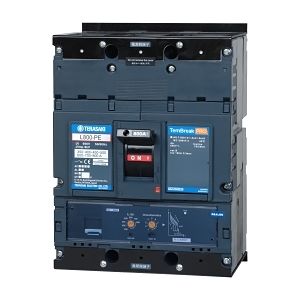

Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 800A Electronic

$10,956.70 List price: $14,549.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 800A Electronic

Brand: NHP

SKU: L800NE3800

Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, Electronic Circuit Breaker

Technical Specifications

Rated Current: 800 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 150 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 320-800 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Short Time Withstand Current: 10 kA for 0.3 sec
Cable Cross Section Range: 35-400 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 273mm x 140mm x 210mm
Weight: 14.8 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 200 kA at 415 V.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety and compliance.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 800A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust circuit protection.

Non-Returnable & Non-Cancellable

L800NE3800-AU-TB2-MCCB-Datasheet.pdf (L800NE3800-AU-TB2-MCCB-Datasheet.pdf, 329 Kb) [Download]
