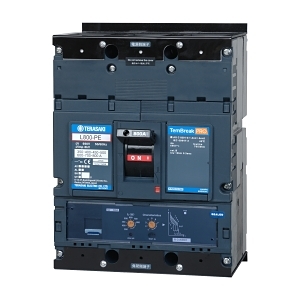

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 690V AC 70kA 3P 800A Rear Connect Electronic
Brand: NHP
SKU: L800PE3800RC
Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, TemBreak 2 Breaker
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V AC
- Trip Unit Type: Electronic release
- Trip Curve: LSI
- Rated Short Circuit Breaking Capacity: 70 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 307 W
- Mechanical Life: 10,000 cycles
- Electrical Life: 500 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Pollution Degree: 3
- Dimensions (H x L x W): 273mm x 304mm x 210mm
- Weight: 14.8 kg
Key Features
- Electronic release for precise trip settings.
- High breaking capacity of 70 kA for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
