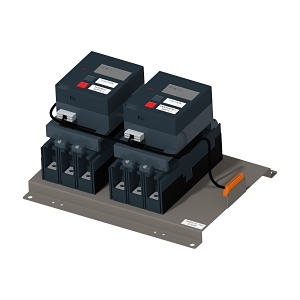

Product Name/Title: Terasaki TemBreak PRO Basic Transfer Switch P400N 400A Thermal Magnetic 50kA 3P and 3P
Brand: NHP
SKU: BTSP400N400TM33
Alternatively Known As: Terasaki Transfer Switch, Basic Transfer Switch, P400N Switch
Technical Specifications
- Rated Current: 400 A
- Rated Voltage (AC 50 Hz): 690 V
- Rated Voltage (AC 60 Hz): 690 V
- Rated Voltage (DC): 250 V
- Frequency: 50/60 Hz
- Number of Poles: 3/3-pole
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Ambient Temperature: -5 to 70 °C
- Dimensions (H x L x W): 360mm x 244mm x 460mm
- Weight: 20 kg
Key Features
- Thermal magnetic protection for enhanced safety.
- Rated for 400A with a 50kA short-circuit rating.
- Suitable for both AC and DC applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and performance.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Any application requiring reliable power transfer
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power management reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO Basic Transfer Switch P400N is available now for immediate purchase, ideal for industrial and commercial power distribution needs.
