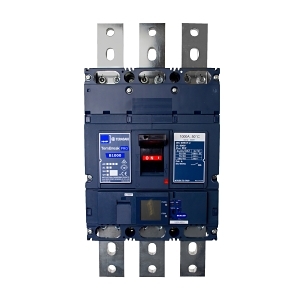

Terasaki TemBreak PRO MCCB 1000 Frame 50kA 3P 1000A Amp Meter Electronic

SKU: B1000N31000SX

BRAND: NHP

Terasaki TemBreak PRO MCCB 1000 Frame 50kA 3P 1000A Amp Meter Electronic

$7,735.30 List price: $10,271.40

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 1000 Frame 50kA 3P 1000A Amp Meter Electronic

Brand: NHP

SKU: B1000N31000SX

Alternatively Known As: Terasaki Circuit Breaker, MCCB 1000A, Electronic Circuit Breaker

Technical Specifications

Rated Current: 1000 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 400-1000 A
Instantaneous Protection Adjustment Range: 2000-10000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 320 W
Electrical Life: 4000 cycles
Mechanical Life: 10000 cycles
Pollution Degree: 3
Rated Surrounding Temperature: -5-70 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 433mm x 145mm x 210mm
Weight: 11 kg

Key Features

Electronic release trip unit for precise protection.
Integrated energy metering function for monitoring power usage.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Efficient energy management through integrated metering reduces overall energy consumption.

Warranty Information

Standard warranty terms apply, please check with the supplier.

Available Now

The Terasaki TemBreak PRO MCCB 1000 Frame 50kA 3P 1000A Amp Meter Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

B1000N31000SX-AU-TBP-MCCB-1000AF-Datasheet.pdf (B1000N31000SX-AU-TBP-MCCB-1000AF-Datasheet.pdf, 324 Kb) [Download]
