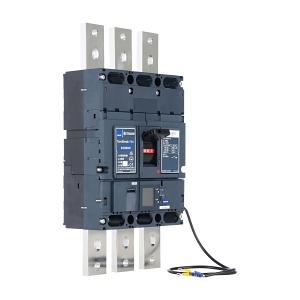

Product Name/Title: Terasaki TemBreak PRO MCCB 1000 Frame 70kA 3P 1000A Amp Meter Electronic
Brand: NHP
SKU: B1000H31000SX
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1000A
Technical Specifications
- Rated Current: 1000 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 400-1000 A
- Instantaneous Protection Adjustment Range: 2000-10000 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: -5-70 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 11 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring power usage.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy metering function helps in monitoring and reducing energy consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1000 Frame is available now for immediate purchase, ideal for industrial and commercial electrical systems.
