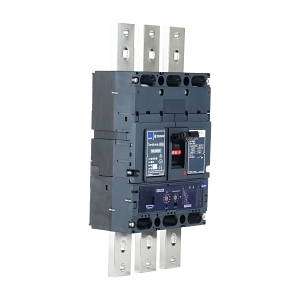

Product Name/Title: Terasaki TemBreak PRO MCCB 1000 Frame 70kA 3P 1000A Basic Electronic
Brand: NHP
SKU: B1000H31000BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1000A
Technical Specifications
- Rated Current: 1000 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 400-1000 A
- Instantaneous Protection Adjustment Range: 2500-10000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Power Loss: 320 W
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 11 kg
Key Features
- Electronic release for precise trip settings.
- High breaking capacity of 70 kA at 415 V.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1000 Frame 70kA 3P 1000A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
