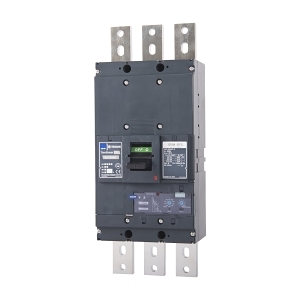

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 85kA 3P 1250A Basic Electronic with Cbl Intlk
Brand: NHP
SKU: B1250HL31250BECI
Alternatively Known As: Terasaki Circuit Breaker, MCCB 1250A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 500-1250 A
- Instantaneous Protection Adjustment Range: 3125-15000 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 270 W
- Electrical Life: 4000 cycles
- Mechanical Life: 5000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Pollution Degree: 3
- Dimensions (H x L x W): 530mm x 171mm x 210mm
- Weight: 19.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 100 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 85kA 3P 1250A Basic Electronic with Cbl Intlk is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
