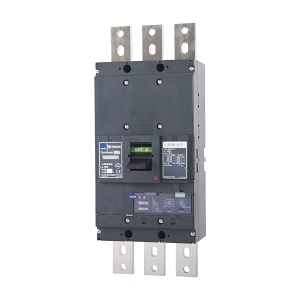

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A Basic Electronic with Cbl Intlk
Brand: NHP
SKU: B1250HL41250BECI
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Trip Curve: LSI
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 270 W
- Mechanical Life: 5000 cycles
- Dimensions (H x L x W): 530mm x 171mm x 280mm
- Weight: 25 kg
Key Features
- 1250A rated current with electronic release trip unit.
- High short circuit breaking capacity of 100 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A is available now for immediate purchase, ideal for industrial and commercial electrical systems.
