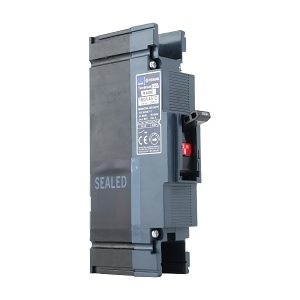

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 16A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: B160E3116FF
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 16A
Technical Specifications
- Rated Current: 16 A
- Number of Poles: 1
- Max Rated Operation Voltage: 250 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 95.5mm x 35mm
- Weight: 0.5 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- Rated ultimate short-circuit breaking capacity of 25 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in electrical installations
- Commercial: Suitable for use in commercial buildings and facilities
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 16A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
