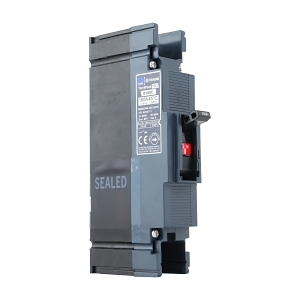

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 50A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: B160E3150FF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 1
- Max Rated Operation Voltage: 250 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Type of Protection: Thermal/magnetic release
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 35mm
- Weight: 0.5 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 25 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in home installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical safety and performance.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 50A is available now for immediate purchase, ideal for industrial and residential electrical safety applications.
