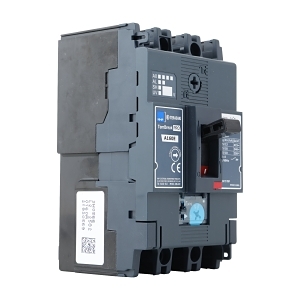

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 40A Adj. Thermal Fix. Magnetic
Brand: NHP
SKU: A160E1340TF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 525 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Adjustable thermal, fixed magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 25-40 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95mm x 75mm
- Weight: 0.8 kg
Key Features
- Adjustable thermal and fixed magnetic trip unit for enhanced protection.
- High breaking capacity of 25 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing the need for frequent replacements and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 40A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
