Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 63A Adj. Thermal Fix. Magnetic

Trade Discount 25%

SKU: A160E1363TF

BRAND: NHP

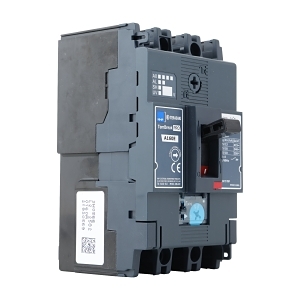

Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 63A Adj. Thermal Fix. Magnetic

$343.00 List price: $455.50

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 63A Adj. Thermal Fix. Magnetic

Brand: NHP

SKU: A160E1363TF

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 63 A
Number of Poles: 3
Max Rated Operation Voltage: 525 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, fixed magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 40-63 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20,000 cycles
Electrical Life: 10,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95mm x 75mm
Weight: 0.8 kg

Key Features

Adjustable thermal and fixed magnetic trip unit for enhanced protection.
High breaking capacity of 25 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 63A is available now for immediate purchase, ideal for industrial and commercial electrical protection.

A160E1363TF-AU-TBP-MCCB-160AF-Datasheet.pdf (A160E1363TF-AU-TBP-MCCB-160AF-Datasheet.pdf, 927 Kb) [Download]
