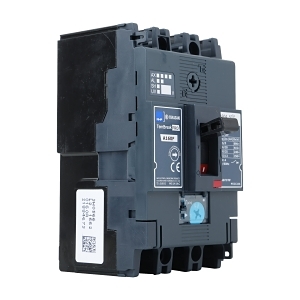

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 100A Adj. Thermal Fix. Magnetic
Brand: NHP
SKU: A160F13100TF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated current: 100 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 20 kA
- Type of protection trip unit: Thermal/magnetic release
- Trip curve: Adjustable thermal, fixed magnetic
- Frame size rating: 160 A
- Long time overload protection adjustment range: 63-100 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 690 V
- Rated short circuit breaking capacity: 6 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Power loss: 34.1 W
- Mechanical life: 20,000 cycles
- Electrical life: 10,000 cycles
- Dimensions (H x L x W): 130mm x 95mm x 75mm
- Weight: 0.8 kg
Key Features
- Rated current: 100 A
- 36 kA short circuit breaking capacity
- Adjustable thermal and fixed magnetic trip unit
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing power loss and enhancing system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
