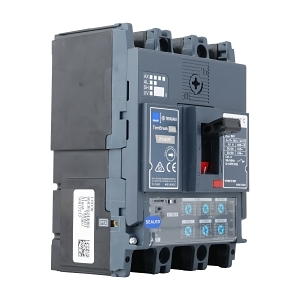

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 100A Basic Electronic
Brand: NHP
SKU: P160F23100BE
Alternatively Known As: Terasaki Circuit Breaker, MCCB 100A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSI
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 36.8-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 3.5 W
- Mechanical Life: 50000 cycles
- Max Vibration Acceleration: 19 m/s²
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for precise protection.
- 36 kA short circuit breaking capacity.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical equipment.
Environmental Benefits
- Designed for energy efficiency, reducing power loss during operation.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 100A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
